| 자동차,전기,전자,통신기기
및 장치 등의 배선(wiring harness)에 전기절연, 기계적보호 및
식별에 사용함 |
| 재
질 |
PVC(
일반용,내열용) |
| 내열성 |
30min/80℃(일반),30min/135℃(내열) |
| 내한성 |
30min/-40℃ |
| 환경유해물질 |
국내
자동차 3사 ,RoHS 만족 |
| 특
징 |
난연성
, 무취(냄새無) |
| 색
상 |
BLACK,
YELLOW 외 다수 <주문사양> |
|
|
| |
 |
| |
|
|
Nominal
diameter
Φ |
PVC
(일반용-연질) |
PVC
(내열용-경질) |

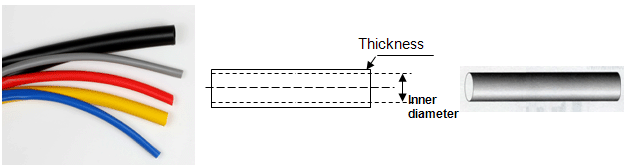

Inner
diameter
㎜ |
Thickness
㎜ |
Inner
diameter
㎜ |
Thickness
㎜ |
| 3 |
3.0
(+0.4 , -0.3) |
0.5
(+0.1 , -0.08) |
3.0(+0.4,-0.3) |
0.4(+0.15,-0.1) |
| 4 |
4.0
(+0.4 , -0.3) |
0.5
(+0.1 , -0.08) |
4.0(+0.4,-0.3) |
0.4(+0.15,-0.1) |
| 5 |
5.0
(+0.4 , -0.3) |
0.5
(+0.1 , -0.08) |
5.0(+0.4,-0.3) |
0.5(+0.15,-0.1) |
| 6 |
6.0
(+0.4 , -0.3) |
0.5
(+0.1 , -0.08) |
6.0(+0.4,-0.3) |
0.5(+0.15,-0.1) |
| 7 |
7.0
(+0.6 , -0.4) |
0.5
(+0.1 , -0.08) |
7.0
(+0.5,-0.4) |
0.7(+0.15,-0.1) |
| 8 |
8.0
(+0.6 , -0.4) |
0.5
(+0.1 , -0.08) |
8.0
(+0.5,-0.4) |
0.7(+0.15,-0.1) |
| 9 |
9.0
(+0.6 , -0.4) |
0.5
(+0.1 , -0.08) |
9.0
(+0.5,-0.4) |
0.7(+0.15,-0.1) |
| 10 |
10.0
(+0.6 , -0.4) |
0.5
(+0.1 , -0.08) |
10.0
(+0.5,-0.4) |
0.8(+0.15,-0.1) |
| 12 |
12.0
(+1.0 , -0.5) |
0.5
(+0.1 , -0.08) |
12.0
(+0.5,-0.4) |
0.8(+0.15,-0.1) |
| 13 |
13.0
(+1.0 , -0.5) |
0.5
(+0.1 , -0.08) |
13.0
(+0.5,-0.4) |
0.8(+0.15,-0.1) |
| 14 |
14.0
(+1.0 , -0.5) |
0.5
(+0.1 , -0.08) |
14.0
(+0.5,-0.4) |
0.8(+0.15,-0.1) |
| 16 |
16.0
(+1.0 , -0.5) |
0.5
(+0.1 , -0.08) |
16.0
(+0.8,-0.5) |
0.8(+0.15,-0.1) |
| 18 |
18.0
(+1.0 , -1.0) |
0.5
(+0.1 , -0.08) |
18.0
(+0.8,-0.5) |
0.8(+0.15,-0.1) |
| 22 |
22.0
(+1.0 , -0.5) |
0.8
± 0.15 |
- |
- |
| 24 |
24.0
(+1.0 , -0.5) |
0.8
± 0.15 |
- |
- |
| 30 |
30.0
(+1.0 , -0.5) |
1.0
± 0.15 |
- |
- |
|
|
| * 두께,내경
조정가능 |
|
| |
| |
|
 |
|
|
