| Application |
| This cable is generally used for connecting mobile electric apparatus under 0.6/1kV as power source lead wire(Hoist, Container crane, Overhead crane) |
 |
| Rated voltage |
0.6
/1kV |
Applicable Standard |
KS
C IEC 60502-1 |
| Maximum conductor temperature in normal use |
70
กษ |
Color/Construction |
Conductor
: Grade 5 ,
Insulation: PVC/A
Sheath: PVC/ST1 |
|
|
| |

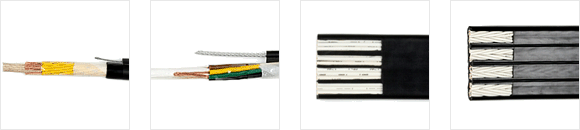

| CABLE
TYPE |
KEVV
- L (LOW - TENSION)
Without hoist-reinforcement |
KEVV
- H (HIGH - TENSION)
With hoist-reinforcement |
 |
 |
KEVV
- HR (HIGH - TENSION)
With hoist-reinforcement, round type |
HT
- VCT
Vinyl cabtyre, hoist type |
 |
 |
VCT vinyl cabtype round type
VCTF-H vinyl cabtyre flexible |
VCT
- F
Vinyl cabtyre flat type |
 |
 |
|
|
| |
|
 |
| |
| |
|
 |
|
|
